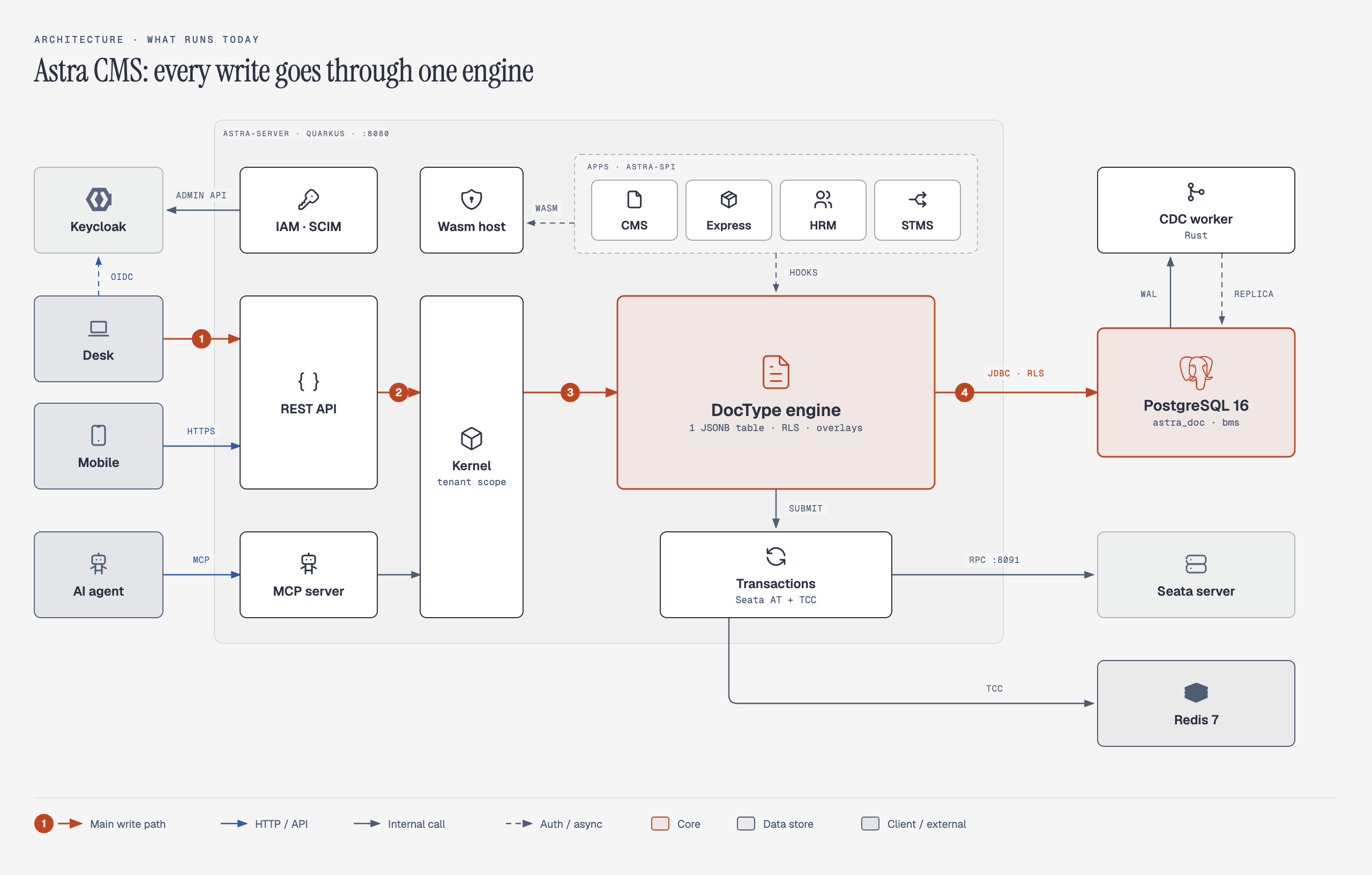

Astra architecture: every write goes through one engine

Clients (the Desk web UI, the mobile app and AI agents over MCP) call one Quarkus server. A request passes the REST API and the tenant-scoping kernel into the DocType engine, which writes to PostgreSQL under row-level security.

What is in the picture

  • Kernel and DocType engine: one JSONB table holds every DocType; overlays add per-tenant fields without migrations.
  • Apps: plain Java and YAML on astra-spi, hooked into the write path (CMS, Express, HRM, STMS).
  • Wasm host: per-tenant business formulas run in a sandbox with time limits.
  • Transactions: Seata (AT and TCC) with Redis coordinates writes that span services.
  • Identity: Keycloak with OIDC, SAML SSO and SCIM provisioning.
  • CDC worker: a Rust worker reads the write-ahead log and keeps read replicas up to date.

The interactive version is astra-architecture.en.html. The articles walk through each part: DocType, multi-tenancy, Seata, Keycloak, Wasm and CDC.
