Roadmap: the rest of use-case-01

▶ English · Tiếng Việt · 1:36 · Script: demo-video-series.en.md

In one sentence: Videos 1 to 17 and 19 to 21 show thin slices of running code; this video, and this article, list what the courier use case still needs and label every one of those items In development.

Read this if: you want to know which extension points already exist in the code so you can see where the missing pieces will attach (developer angle) / you are deciding whether to pilot Astra and need an honest line between what runs and what is only designed (tech-lead angle).

[!WARNING] Everything marked "In development" in this article is not built. It is target design from use-case-01.md and the README roadmap. No video demonstrates it, and no code sample below implements it. Code excerpts in this article are taken from components that run today; they are shown because they are the places where the missing pieces are meant to attach.

Status legend used below: Running = shown in a demo video and present in the repository. In development = not built; target design only.

The problem

Platform demos tend to blur two things: what the product does today and what the architecture slide promises. Evaluators then discover the gap during a pilot, which is the most expensive time to find it.

Astra's demo series follows one storyline, use-case-01: Astra Express, a courier company with seven business modules (OMS orders, OPS parcel operations, BMS billing and ledger, HRM payroll, NOC insights, STMS dispatch, CARE customer care) on one platform. The videos prove the mechanisms with thin slices: enough code to show the mechanism working, not the full module. Each mechanism video ends with a "To be accurate" note on its own limits. Video 18 collects those limits in one place.

Frappe and ERPNext, which Astra uses as a design reference (concepts only, no shared code), are mature products with years of modules behind them. Astra is not at that point. The comparison that matters for a reader today is not feature count, but whether the mechanisms Astra does run (zero-DDL DocTypes, per-tenant overlays, a Wasm sandbox, an append-only ledger, CDC with read-your-writes, MCP with permissions) are the right foundation for the rest.

What the video shows

Ninety-six seconds, no demo footage. Every frame carries the label "Roadmap / In development". The scenes follow the narration:

1. Title. "The rest is running code. This is work in progress."
2. What runs. Thin slices from DocType to Seata, plus HRM, STMS and SAML SSO (Videos 19 to 21). Each video lists its limits; this one collects them.
3. Storage. Running: JSONB, an append-only ledger, a separate BMS schema, Seata. In development: a schema per module, the TCC fence table, a production Seata store.
4. Identity and extensibility. Running: Keycloak, SAML SSO, SCIM, Wasm. In development: row-level permissions, Single Logout, SCIM Bulk, Tier 1 isolated JVMs.
5. Data and AI. Running: Rust CDC, MCP with personal data masked. In development: streaming CDC, Apache Doris, autonomous agents, vector RAG.
6. Business modules. HRM needs income tax, payouts and a month-end job. STMS needs a real LLM, real maps and a driver app. Audit hash chains and field encryption have not started.
7. Close. Each step runs for real before it gets a video; the README holds the roadmap. The most useful feedback now is critique of the DocType model and overlays.

How it works

This section describes the target design. Each subsection names what is running, what is in development, and the running code that the in-development piece will extend.

View source

flowchart LR
    subgraph RUN["Running today (Videos 1–17, 19–21)"]
        J[JSONB DocTypes + projection index]
        L[Append-only ledger]
        S[Seata AT + TCC]
        K[Keycloak, SAML SSO, SCIM]
        W[Tier 0 apps, Tier 2 Wasm]
        C[Rust CDC + Sync-Aware LSN]
        M[MCP + PII masking]
        H[HRM slice]
        T[STMS slice, simulated LLM]
    end
    subgraph DEV["In development (not built)"]
        J2[Schema per module, hot columns]
        L2[Audit hash chain, field encryption]
        S2[Kernel as AT branch, TCC fence, DB/Raft store]
        K2[Row-level permission conditions, Single Logout, SCIM Bulk/ETag]
        W2[Tier 1 isolated JVM, Wasm instruction counting]
        C2[Streaming CDC, Apache Doris, NOC]
        M2[Autonomous agents, pgvector RAG, OAuth for MCP]
        H2[Income tax, payout, month-end job, self-service slips]
        T2[Real LLM, maps and traffic, forecasting, driver app]
    end
    J --> J2
    L --> L2
    S --> S2
    K --> K2
    W --> W2
    C --> C2
    M --> M2
    H --> H2
    T --> T2

Architecture roadmap: core kernel features and business apps running today versus roadmap capabilities in development.

Storage

• Running: every DocType in one JSONB table with online expression indexes for projected: true fields (Video 2); an append-only ledger with monthly partitions (Video 12); BMS data in its own bms schema with its own role (Video 17).
• In development: use-case-01 puts each module in its own PostgreSQL schema (schema_oms, schema_ops, schema_hrm, …) with row-level security, and adds "hot-field materialisation" for documents whose status changes many times a day (parcel status, vehicle position): frequently updated fields move to physical columns so that PostgreSQL can update them without rewriting the JSONB document.
• In development: an audit hash chain over every change and field-level encryption declared in the DocType YAML (encrypt: field). The narration says these have not started.

The ledger's append-only guarantee today is a database trigger. A hash chain would add tamper evidence on top of this tamper resistance:

astra-doctype/src/main/resources/db/migration/V3__ledger.sql (running)

CREATE FUNCTION astra_ledger_append_only() RETURNS trigger LANGUAGE plpgsql AS $$
BEGIN
    RAISE EXCEPTION 'astra_ledger is append-only: post a reversal instead of %', TG_OP
        USING ERRCODE = 'insufficient_privilege';
END $$;

CREATE TRIGGER astra_ledger_no_update_delete
    BEFORE UPDATE OR DELETE ON astra_ledger
    FOR EACH ROW EXECUTE FUNCTION astra_ledger_append_only();

Why this order. The trigger blocks UPDATE and DELETE but not the table owner's DROP or ALTER (Video 12's "To be accurate"). A hash chain detects tampering that slips past access control; it is listed in the README's next steps.

Transactions

• Running: Seata 2.6 AT branch on the BMS credit limit, TCC branch on Redis pickup capacity, and the kernel's own transaction committed last (Video 17).
• In development: the kernel as a Seata AT branch itself (today it is the "last resource"), Seata's TCC fence table for idempotency and suspension (today each TCC participant handles that itself), and a DB or Raft store for Seata Server (today it uses the file store).

Identity and permissions

• Running: Keycloak OIDC with per-tenant roles and DocType permissions, segregation of duties (Video 11); SAML SSO and per-tenant SCIM 2.0 (Video 21).
• In development: row-level permission conditions (for example "an accountant sees only her branch's documents"), SAML Single Logout, SCIM Bulk and ETag, and full SCIM filters (today only userName eq and displayName eq).

Extensibility tiers

• Running: Tier 0 apps compiled into the image (Express, HRM, STMS, CMS) and the Tier 2 Wasm sandbox for tenant formulas (Video 14).
• In development: Tier 1, an isolated JVM class loader for hot-swapping plugins without a pod restart. use-case-01 intends it for localisations such as Vietnamese e-invoicing, VAT, payment gateways and 3PL connectors. Also in development: instruction counting ("fuel") for Wasm, so the CPU limit is not only a wall-clock deadline.

Today the Wasm CPU control is a deadline, stated in the sandbox's own documentation:

astra-plugin-host/src/main/java/io/astra/pluginhost/WasmSandbox.java (running)

/**
 * Tier 2 sandbox on Chicory, a pure-Java WebAssembly runtime: no native code, no JNI, nothing the
 * module can reach outside its own linear memory. Each call gets a fresh instance (no state survives
 * between calls or leaks between tenants), memory is capped at {@code astra.scripts.max-memory-pages}
 * (64 KiB each), host imports are refused, and the call runs on its own virtual thread that is
 * interrupted at the deadline. Chicory has no instruction metering, so the deadline is the CPU control.
 */

Data, analytics and AI

• Running: a Rust CDC worker decoding pgoutput into a CARE replica, with X-Tx-LSN / X-Required-LSN read-your-writes (Video 16); an MCP server with PII masking and app-contributed tools (Video 15).
• In development: the streaming replication protocol (today the worker polls the slot), pushing changes into Apache Doris for the NOC module, and NOC dashboards. use-case-01 describes Doris tables exposed as "virtual DocTypes" so that the same permissions and generated UI apply to analytics.
• In development: autonomous agents (beyond tools called by a client), pgvector-based retrieval for CARE, and OAuth discovery for MCP clients (today the client uses a static bearer token).

The CDC worker's current read loop is a poll, which is what the streaming protocol would replace:

astra-cdc-rust/src/main.rs (running)

    loop {
        let cur: String = client.query_one("SELECT pg_current_wal_lsn()::text", &[]).await?.get(0);
        let rows = client
            .query(
                "SELECT lsn::text, data FROM pg_logical_slot_peek_binary_changes($1, $2::text::pg_lsn, NULL, \
                 'proto_version', '1', 'publication_names', $3)",
                &[&cfg.slot, &cur, &cfg.publication],
            )
            .await?;
        // …

Business modules

• HRM, running (Video 19): attendance, Payroll Entry, salary slips on virtual threads, a Wasm KPI bonus, one accrual voucher per run. In development: personal income tax, the employer insurance share, the salary payout entry, a month-end background job with leader election, employee self-service slips, and parcel counts fed by CDC from OPS and STMS instead of typed with attendance.
• STMS, running (Video 20): Timefold routing in the kernel, replanning, MCP tools, a dispatch copilot whose LLM is simulated. In development: a real LLM provider, real maps and traffic, load forecasting (Tier 1), a driver app.
• NOC and the full CARE design: In development. CARE today is the ticket triage and CDC replica slice of Video 6.

The STMS copilot shows the pattern most roadmap items follow: the interface is in the code, the real implementation is not. The interface's documentation says so:

astra-apps/stms/src/main/java/io/astra/apps/stms/copilot/LlmClient.java (running interface; only a mock implements it)

/**
 * The language model behind the dispatch copilot: turns a dispatcher's instruction into tool calls. Implementations
 * are CDI beans; {@code astra.stms.llm} selects one by {@link #id()}. Only {@link MockLlmClient} exists today; a real
 * provider plugs in here with the same contract.
 */
public interface LlmClient {

SPI contracts and extension points exist across modules; target enterprise domains will implement them incrementally.

Smaller gaps named in other videos

These are not in the Video 18 table but are stated in the scripts' "To be accurate" notes. All are In development:

Real-world example

Illustrative scenario: the company, people and values are made up; the mechanism and the rules it applies are the real ones shown above.

A mid-size 3PL in Vietnam with branches in Hanoi and Ho Chi Minh City is considering Astra for order intake, parcel operations, COD settlement, payroll and dispatch. Its CTO maps the requirements to the status above:

Output of the exercise: a pilot scoped to OMS, OPS, BMS and tenant overlays, with payroll and dispatch kept on existing tools, and a list of five roadmap items to track. That is the decision Video 18 is meant to support.

Recommended pilot scope: validating tenancy, doc lifecycle, append-only ledgers, and developer ergonomics.

For technical leaders

• Read the status, not the architecture diagram. The README states that everything outside "Project Status" describes target architecture and that performance figures there are design targets, not measurements.
• Where to invest evaluation time. The narration asks for critique of the DocType model and overlays. Those are the decisions that are hardest to change later; most roadmap items attach behind existing interfaces (LlmClient, the ledger SPI, the sandbox, the CDC worker).
• Risk of the gaps. The ones that change data or security guarantees (row-level permission conditions, audit hash chain, field encryption, safe schema evolution) matter more for a pilot than the ones that add features (Doris, driver app).
• What to measure in a pilot. Request latency on hooks that do batch work (payroll runs inside a request), solver CPU per tenant (STMS), CDC lag under your write rate, and rolling-restart errors (Video 10 measured 2 of 47 requests failing during a restart without drain).
• When not to adopt yet. If the first workload depends on an In-development item (tax-compliant payroll, real-road routing, an LLM assistant), Astra is not ready for it.

Try it yourself

There is nothing to run for the In-development items. Everything in the "Running" lists can be run from the repository. Prerequisites: JDK 25, Docker with about 8 GB of RAM, kubectl, k3d, jq, Bash 5.

make k3d-up && make demo-seed                    # the whole stack, two tenants
make demo-express SCENES="9 10" PAUSE=0          # Keycloak permissions and SoD, then the ledger
make demo-express SCENES="11 12 13" PAUSE=0      # overlays, Wasm, MCP
make demo-express SCENES="14 15" PAUSE=0         # Rust CDC + LSN, Seata AT + TCC
make demo-hrm                                    # HRM slice (Video 19)
make demo-stms                                   # STMS slice (Video 20), copilot LLM simulated
make demo-sso                                    # SAML SSO and SCIM (Video 21); see its script for Keycloak setup

Video 8 (the kernel refuses to start as a superuser) needs the Docker Compose stack: make infra-up && make build && make demo-express SCENES=8. Each scene's expected output is described in its article and in demo-video-series.en.md.

To be accurate

• Every item marked In development is not built. Descriptions of it come from use-case-01.md and the README and may change as the work is done.
• The video's table covers the main gaps, not every limit. The full list for each mechanism is in that video's "To be accurate" section in demo-video-series.en.md.
• The "Running" items are thin slices: enough to prove the mechanism, not the full scope of the use case.
• This article does not give dates or an order of delivery for the In-development items; the README's phase list is the authority on sequencing.

Figures

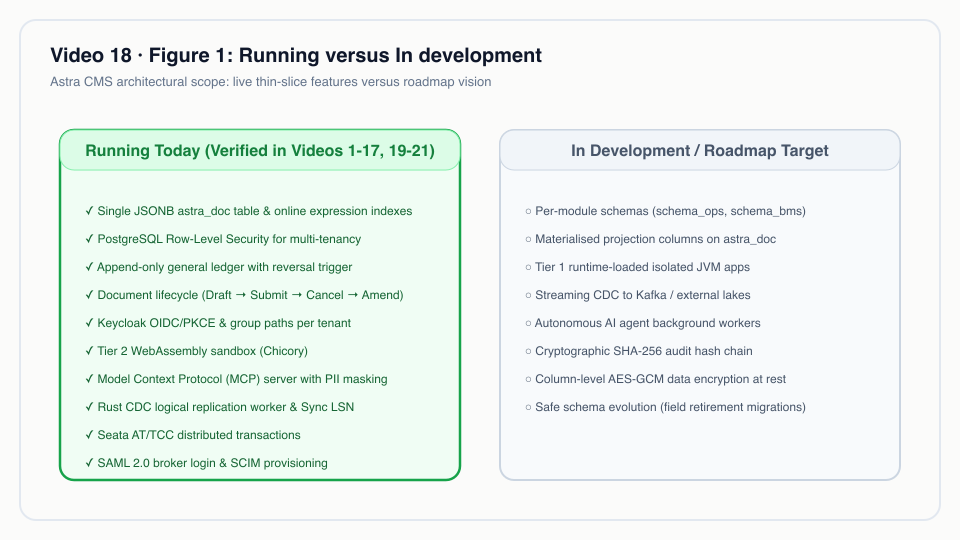

• Figure 1 · Running versus In development

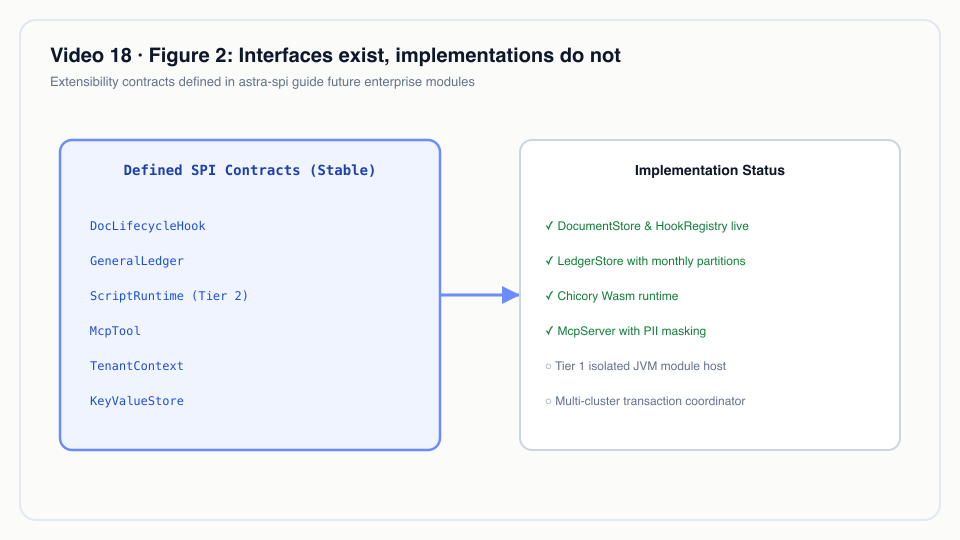

• Figure 2 · Interfaces exist, implementations do not

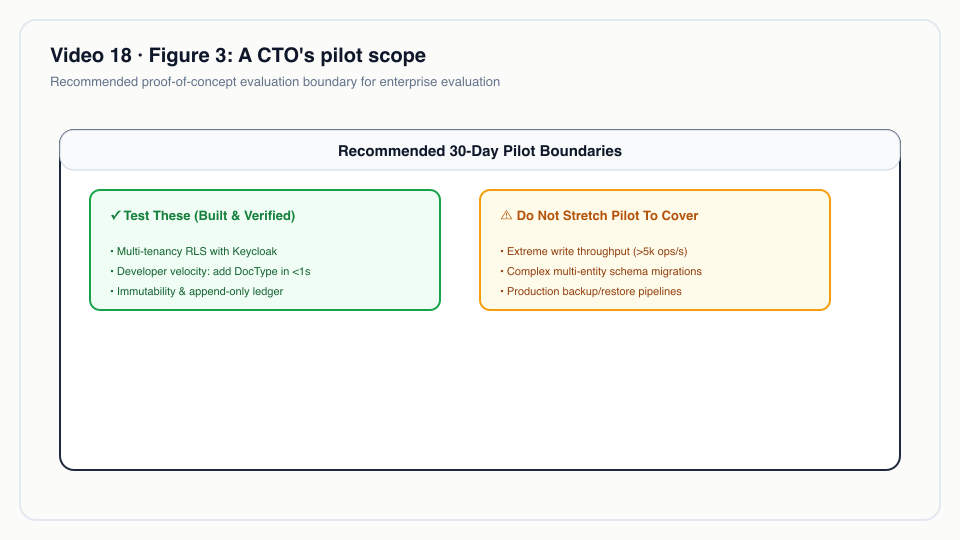

• Figure 3 · A CTO's pilot scope
