HRM: attendance and payroll

A payroll app that uses only Astra's public SPI and follows the Frappe HRMS model: attendance sets the working days, a tenant's Wasm module computes the courier bonus, one Payroll Entry computes every salary slip in…

Markdown
On this page

▶ English · Tiếng Việt · 2:40 · Script: demo-video-series.en.md

In one sentence: A payroll app that uses only Astra's public SPI and follows the Frappe HRMS model: attendance sets the working days, a tenant's Wasm module computes the courier bonus, one Payroll Entry computes every salary slip in parallel, and submitting it writes exactly one balanced accrual journal entry to the append-only ledger.

Read this if: you want to see how a real business module (eight DocTypes, five hooks, one MCP tool) is built on the SPI without touching the kernel (developer angle) / you are judging whether a metadata platform can carry money-sensitive batch work such as month-end payroll, and what is still missing before it is payroll software (tech-lead angle).

The problem

Astra Express pays couriers a base salary plus a bonus per parcel delivered. At month end, HR at the Saigon tenant has to turn attendance into working days, apply the parcel bonus tariff, deduct the employee's social, health and unemployment insurance, and hand accounting a journal entry that matches the slips to the đồng. The usual failure modes are familiar:

  • Payroll lives in a spreadsheet. Working days are typed by hand, the bonus formula is copied between tabs, and the accountant re-keys totals into the ledger. Nobody can show which input produced which line.
  • The bonus rule changes per region and per quarter. In a classic ERP that means a code change or a vendor customisation. Each tenant wants its own tariff without a release of the whole product.
  • Slips and ledger drift apart. If slips are saved in one step and the journal entry is posted in another, a crash in between leaves a month that is half accrued. Cancelling a run later has to undo both, without deleting history.

Frappe HRMS (on top of ERPNext) solves this with a well-known set of concepts: Employee, Salary Component, Salary Structure, Salary Structure Assignment, Attendance, Additional Salary, Payroll Entry and Salary Slip. A Payroll Entry creates the slips for a period and books an accrual journal entry. Salary component formulas there are Python expressions evaluated by the framework.

Astra's HRM app takes the concept names only. The script states it plainly: no code, schema or UI is copied from ERPNext or HRMS. What differs is where each piece runs: the formulas that vary per tenant run in the Tier 2 Wasm sandbox, the slips are computed on virtual threads, and the accrual goes through the same GeneralLedger SPI the Express app uses for freight revenue.

What the video shows

The recording runs make demo-hrm against the k3d stack after make demo-seed, which loads September 2026 (26 working days, Monday to Saturday) for saigon-express. The script signs in as hanh (role hr).

  1. The app (scene 1). App io.astra.hrm, eight DocTypes in module hrm, depending only on astra-spi. The narration: "Frappe HRMS concept names, no code."
  2. Components (scene 1). Eight Salary Components: base pay, lunch and fuel allowances, a KPI bonus, a one-off bonus, and the employee's insurance: BHXH 8 %, BHYT 1.5 %, BHTN 1 %, posted to accounts 3383, 3384 and 3386. Rates are demo seed values.
  3. The courier bonus in Wasm (scene 2). Rust code in astra-apps/hrm/wasm/courier-kpi: 1,500 ₫ per parcel up to 600, 2,000 ₫ up to 1,000, 2,500 ₫ beyond, plus 500,000 ₫ for full attendance. On save the kernel test-runs it: kpi(1000 pieces, 26/26 days) = 2200000 VND. An infinite-loop module is stopped at 50 ms and rejected with 422.
  4. Attendance (scene 3). NV002 is absent on 15/9 and on a half day on 22/9, so 24.5 payment days. NV004 is on unpaid leave on 29/9. A day with no record counts as worked. quang (ops) can submit attendance but gets 403 on Salary Slip; tuan (sales) gets 403 on Payroll Entry.
  5. One save, every slip (scene 4). Saving a draft Payroll Entry for 1 to 30 September creates four draft slips, computed in parallel with one virtual thread each, in the same transaction as the entry. In the recorded run the entry is PAY-2610-002 (the series uses the creation month) and the slips are SAL-2610-00005 to SAL-2610-00008.
  6. A slip, line by line (scene 5). NV002: 100% of 6500000 (base) × 24.5/26 days = 6,125,000; KPI Wasm kpi(1007 pieces, 24.5/26 days) = 1,717,500; BHXH 8% of 6500000 (base) = 520,000; gross 9,001,539, net 8,319,039. NV003 joined on 14/9, so 15 working days, plus a 500,000 ₫ Additional Salary. A client that sends net_pay gets 422 field 'net_pay' is read-only.
  7. Submit (scene 6). Four employees, gross 35,837,501, deductions 3,517,500, net 32,320,001. One accrual voucher with five lines: Debit 642 35,837,501; Credit 3383 2,680,000; Credit 3384 502,500; Credit 3386 335,000; Credit 334 32,320,001. Each slip's accrual_voucher is set to the entry name.
  8. Three refusals (scene 6). Cancelling one slip of a submitted run returns 422 "cancel the payroll entry instead". A second September run returns 422 "NV001 already has submitted salary slip …". Setting pay from the client was already refused in scene 5.
  9. MCP (scene 7). payroll_summary returns totals and slip lines with masked names (N*** V*** A***). tuan calling the same tool gets isError: true, "not permitted: read PayrollEntry".
  10. Cancel (scene 8). The slips move to docstatus 2, the voucher gets five more lines with is_reversal: true, and the trial balance of 334, 3383, 3384, 3386 and 642 returns to 0. No row is deleted.

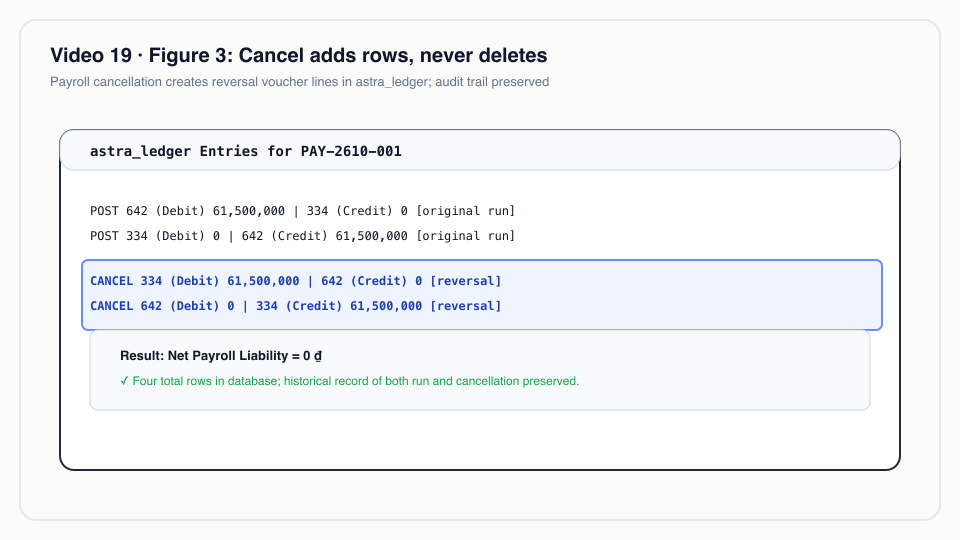

Figure 3: Cancel adds rows, never deletes Cancelling a payroll run posts mirror reversals to astra_ledger, preserving historical payroll audit trails.

How it works

The shape of the app

HrmApp is a Tier 0 app: a CDI bean that lists its DocType YAML files. Everything else is hooks and one MCP tool.

astra-apps/hrm/src/main/java/io/astra/apps/hrm/HrmApp.java

@ApplicationScoped
public class HrmApp implements AstraApp {

    @Override
    public String id() { return "io.astra.hrm"; }
    // …
    @Override
    public List<String> doctypeResources() {
        return List.of(
                "META-INF/astra/doctypes/employee.doctype.yaml",
                "META-INF/astra/doctypes/salary-component.doctype.yaml",
                "META-INF/astra/doctypes/salary-structure.doctype.yaml",
                "META-INF/astra/doctypes/salary-structure-assignment.doctype.yaml",
                "META-INF/astra/doctypes/attendance.doctype.yaml",
                "META-INF/astra/doctypes/additional-salary.doctype.yaml",
                "META-INF/astra/doctypes/payroll-entry.doctype.yaml",
                "META-INF/astra/doctypes/salary-slip.doctype.yaml");
    }
}

The Payroll Entry is an ordinary submittable DocType. Its totals are read-only, so only the hook can set them, and the permission table is where "sales gets 403" comes from:

astra-apps/hrm/src/main/resources/META-INF/astra/doctypes/payroll-entry.doctype.yaml

name: PayrollEntry
module: hrm
kind: transaction
submittable: true
naming: { series: "PAY-.YYMM.-.###" }
# …
fields:
  - { name: start_date,      type: Date,     required: true, in-list: true }
  # …
  - { name: total_net,       type: Currency, read-only: true, in-list: true }
# …
permissions:
  - { role: admin,      read: true, create: true, write: true, submit: true, cancel: true }
  - { role: hr,         read: true, create: true, write: true, submit: true, cancel: true }
  - { role: accountant, read: true }

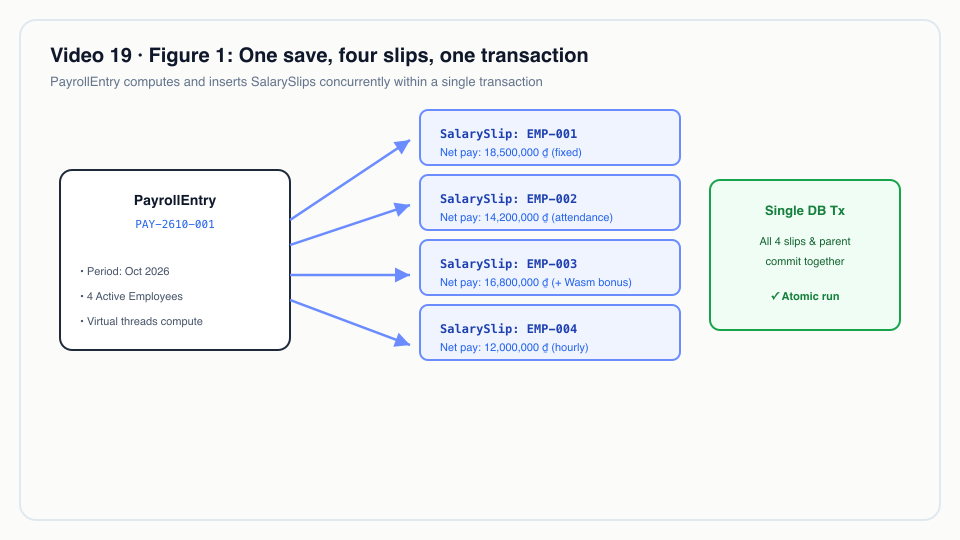

Figure 1: One save, four slips, one transaction One payroll entry save computes four employee salary slips in parallel within a single database transaction.

Save, submit, cancel

Diagram
Diagram; View source
View source
sequenceDiagram
    participant HR as hanh (hr)
    participant K as Kernel (DocumentStore)
    participant PE as PayrollEntryHook
    participant SC as SalaryCalculator
    participant W as Wasm sandbox
    participant SS as SalarySlipHook
    participant GL as GeneralLedger SPI
    HR->>K: POST /api/doc/PayrollEntry (1–30 Sep)
    K->>PE: afterSave (same transaction)
    PE->>PE: PayrollInputs.load per employee
    PE->>SC: computeAll(batch)
    par one virtual thread per slip
        SC->>W: kpi(pieces, days×10, working)
    end
    SC-->>PE: computed slips
    PE->>K: insert SalarySlip ×4 (PRECOMPUTED bound)
    K->>SS: beforeSave takes precomputed values
    HR->>K: POST …/PAY-2610-002/submit
    K->>PE: onSubmit
    PE->>K: submit each draft slip
    PE->>GL: post one voucher (Dr 642 · Cr 3383/3384/3386 · Cr 334)
    K-->>HR: 200, docstatus 1 (one commit)

Saving a draft entry rebuilds the draft slips. The hook reads every input inside the entry's transaction first, then hands the pure calculation to SalaryCalculator, then writes the slips back in the same transaction:

astra-apps/hrm/src/main/java/io/astra/apps/hrm/PayrollEntryHook.java

    @Override
    public void afterSave(Document entry) {
        if (entry.docstatus() != 0) return;
        // …
        List<SalaryInput> batch = new ArrayList<>();
        List<String> unassigned = new ArrayList<>();
        for (Document e : employees) {
            Document slip = existing.get(e.name());
            if (slip != null && slip.docstatus() != 0) continue;   // submitted or cancelled on its own: leave it
            inputs.load(e, start, end).ifPresentOrElse(batch::add, () -> unassigned.add(e.name()));
        }
        // …
        List<Map<String, Object>> computed = calculator.computeAll(batch);
        // …
        ScopedValue.where(SalarySlipHook.PRECOMPUTED, byEmployee).run(() -> {
            for (SalaryInput in : batch) {
                // …
                    docs.insert("SalarySlip", period, entry.owner());
                // …
            }
        });
    }

Why split read, compute and write. Database access stays on the request's thread and its single transaction. The calculation touches no storage, so it can safely fan out. The Wasm KPI call dominates the cost, which is why computeAll uses one virtual thread per slip:

astra-apps/hrm/src/main/java/io/astra/apps/hrm/SalaryCalculator.java

    List<Map<String, Object>> computeAll(List<SalaryInput> inputs) {
        try (ExecutorService threads = Executors.newVirtualThreadPerTaskExecutor()) {
            List<Future<Map<String, Object>>> futures = inputs.stream().map(in -> threads.submit(() -> compute(in))).toList();
            // …
        }
    }

Why a ScopedValue for precomputed results. SalarySlipHook.beforeSave computes a slip whenever a draft slip is saved. When the entry writes its own slips, it binds PRECOMPUTED so the slip hook reuses the batch result instead of computing twice. The binding is in-process (see PRECOMPUTED in SalarySlipHook), so a REST client cannot smuggle computed values in through it.

Working days and the four calculation types

Payment days are working days minus days outside employment, minus Absent, minus half of each Half Day, minus Leave Without Pay. Unmarked days count as worked. This is the rule that gives NV002 24.5 of 26:

astra-apps/hrm/src/main/java/io/astra/apps/hrm/SalaryCalculator.java

            lost += switch (att.getString("status")) {
                case "Absent" -> 1;
                case "Half Day" -> 0.5;
                case "On Leave" -> "Leave Without Pay".equals(att.getString("leave_type")) ? 1 : 0;
                default -> 0;
            };
        }
        double paymentDays = Math.max(0, working - outside - lost);

Each component has one of four calculations: Fixed, Percent of Base (optionally capped), Percent of Gross (deductions only) and Wasm. Every line records a human-readable basis, which is what the video shows as "traces every line":

astra-apps/hrm/src/main/java/io/astra/apps/hrm/SalaryCalculator.java

            case "Wasm" -> {
                long v;
                try {
                    v = kpi(scripts, c, ctx.pieces(), Math.round(ctx.paymentDays() * 10), ctx.workingDays());
                } catch (ScriptException e) {
                    throw new DocValidationException("component " + c.name() + ": formula failed (" + e.reason() + "): " + e.getMessage());
                }
                // …
                basis = "Wasm kpi(" + ctx.pieces() + " pieces, " + Values.plain(ctx.paymentDays()) + "/" + ctx.workingDays() + " days)";
            }

Payment days are passed to Wasm as payment_days × 10, an integer, because the sandbox exchanges only i64 values.

The tenant's bonus formula

astra-apps/hrm/wasm/courier-kpi/src/lib.rs

const TIERS: [(i64, i64); 3] = [(600, 1_500), (1_000, 2_000), (i64::MAX, 2_500)]; // (up to pieces, VND per piece)
const FULL_ATTENDANCE_BONUS: i64 = 500_000;

#[unsafe(no_mangle)]
pub extern "C" fn kpi(pieces: i64, payment_days_x10: i64, working_days: i64) -> i64 {
    let pieces = pieces.max(0);
    let mut bonus = 0;
    let mut floor = 0;
    for (ceiling, rate) in TIERS {
        if pieces <= floor {
            break;
        }
        bonus += (pieces.min(ceiling) - floor) * rate;
        floor = ceiling;
    }
    if working_days > 0 && payment_days_x10 >= working_days * 10 {
        bonus += FULL_ATTENDANCE_BONUS;
    }
    bonus
}

NV002's 1,007 parcels: 600 × 1,500 + 400 × 2,000 + 7 × 2,500 = 1,717,500 ₫, with no attendance bonus because 24.5 < 26.

A module cannot reach payroll unless it passes a self-test on save. A module that loops forever is stopped at its deadline and the save is rejected:

astra-apps/hrm/src/main/java/io/astra/apps/hrm/SalaryComponentHook.java

        try {
            bonus = SalaryCalculator.kpi(scripts, c, 1_000, 260, 26);
        } catch (ScriptException e) {
            throw new DocValidationException("module rejected (" + e.reason() + "): " + e.getMessage());
        }
        if (bonus < 0 || bonus > 1_000_000_000L) throw new DocValidationException("module rejected: kpi(1000 pieces, 26/26 days) returned " + bonus);
        // …
        c.set("self_test", "kpi(1000 pieces, 26/26 days) = " + bonus + " VND in " + micros + " µs");

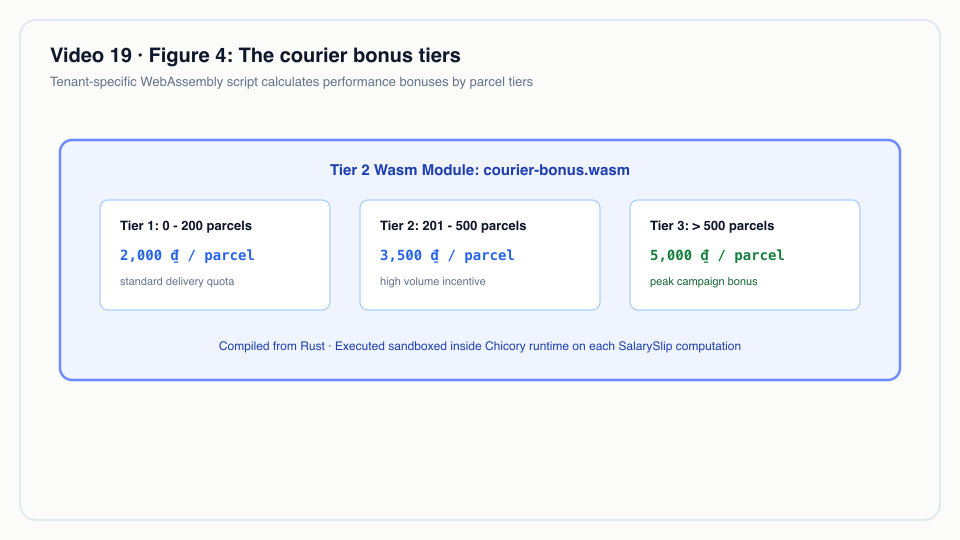

Figure 4: The courier bonus tiers Courier performance bonuses evaluated dynamically via WebAssembly pricing formulas per tenant.

One accrual voucher per run

On submit the entry submits every draft slip, totals earnings and deductions per GL account, and posts one voucher through the GeneralLedger SPI, inside the entry's transaction. If any step fails, the whole run rolls back:

astra-apps/hrm/src/main/java/io/astra/apps/hrm/PayrollEntryHook.java

        List<Entry> lines = new ArrayList<>();
        byAccount(submitted, "earnings").forEach((account, amount) -> lines.add(Entry.debit(account, null, amount)));
        byAccount(submitted, "deductions").forEach((account, amount) -> lines.add(Entry.credit(account, null, amount)));
        lines.add(Entry.credit(SALARY_PAYABLE, null, BigDecimal.valueOf(sum(submitted, "net_pay"))));
        ledger.post("PayrollEntry", entry.name(), Values.requireDate(entry, "posting_date"), lines,
                "Payroll accrual " + entry.getString("start_date") + " – " + entry.getString("end_date")
                        + " (" + submitted.size() + " slips)");

The voucher balances by construction: gross (debit 642) equals deductions (credits to 3383, 3384, 3386) plus net (credit 334). In the recorded run: 2,680,000 + 502,500 + 335,000 + 32,320,001 = 35,837,501.

Why the slip does not post itself. One voucher per run keeps the ledger readable for the accountant and makes cancellation a single reversal. The cost is that 334 holds a total, not a balance per employee (see "To be accurate").

Cancel is the mirror image: the entry cancels its own slips (binding CANCELLING_ENTRY so the slip guard lets them through) and asks the ledger for one reversal. The ledger table itself refuses UPDATE and DELETE (see Video 12).

astra-apps/hrm/src/main/java/io/astra/apps/hrm/PayrollEntryHook.java

    @Override
    public void onCancel(Document entry) {
        ScopedValue.where(SalarySlipHook.CANCELLING_ENTRY, entry.name()).run(() -> {
            for (Document slip : slips(entry)) {
                if (slip.docstatus() == 1) docs.cancel("SalarySlip", slip.name());
            }
        });
        ledger.reverse("PayrollEntry", entry.name());
    }

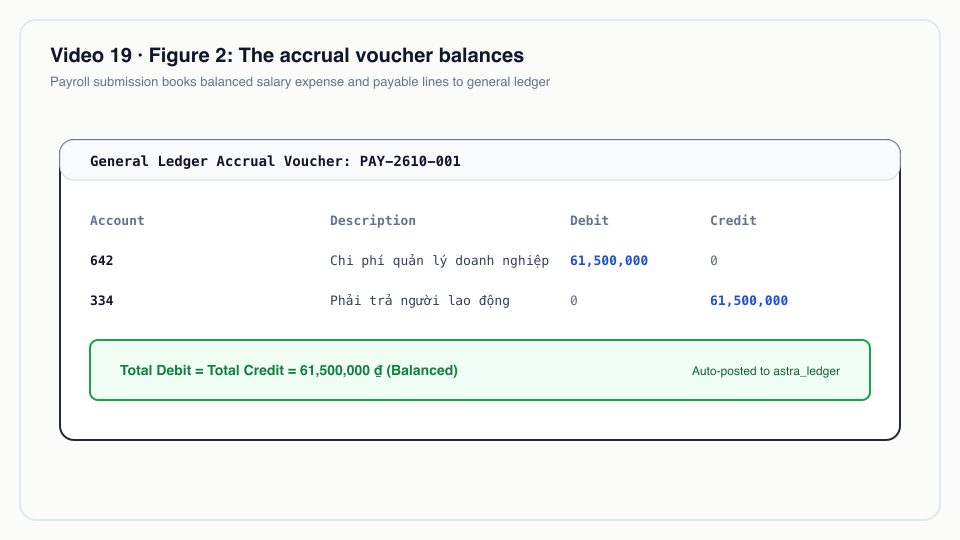

Figure 2: The accrual voucher balances Submitting a payroll run posts a balanced general ledger accrual voucher across salary expense and payable accounts.

The AI agent's view

PayrollSummaryTool (payroll_summary) is an app-contributed MCP tool. Its reads() returns PayrollEntry and SalarySlip, so the MCP server checks the caller's read permission on both DocTypes before the call; that is why tuan gets "not permitted: read PayrollEntry". employee_name is marked pii: true in the DocTypes, so names leave masked through the kernel's MCP masking (see Video 15).

Real-world example

A courier company in Ho Chi Minh City runs payroll for its delivery staff on the seeded COURIER structure. Take one courier for September 2026 (26 working days) with a contract base of 7,000,000 ₫, one absent day and 820 parcels delivered. The values below are computed by hand from the code's rules and the seed components; they are illustrative, not output from a run.

Inputs: Attendance: one Absent record on a working day. Parcels entered with attendance: 820. Assignment: COURIER, base 7,000,000.

What Astra does:

Line Rule Amount (₫)
BASIC 100 % of 7,000,000 × 25/26 days 6,730,769
LUNCH 730,000 fixed × 25/26 days 701,923
FUEL 500,000 fixed × 25/26 days 480,769
KPI (Wasm) 600 × 1,500 + 220 × 2,000; no attendance bonus (25 < 26) 1,340,000
Gross 9,253,461
BHXH 8 % of 7,000,000 (base, not prorated) 560,000
BHYT 1.5 % of 7,000,000 105,000
BHTN 1 % of 7,000,000 70,000
Net gross − 735,000 8,518,461

Outputs: the slip carries every line with its basis string, so an employee query ("why is my lunch allowance 701,923?") is answered from the document. When HR submits the month's Payroll Entry, this courier's amounts are folded into one voucher for the run: 9,253,461 into Debit 642, 560,000 into Credit 3383, and so on. If the regional manager changes the parcel tariff next quarter, the tenant uploads a new Wasm module to the KPI component; the self-test runs on save and no Java code changes.

A run is limited to 1,000 employees (MAX_EMPLOYEES in PayrollEntryHook). A company above that size would have to split runs, for example by designation (the entry's filter field: All, Courier, Driver, Hub Staff, Office).

For technical leaders

  • What this proves. A money-sensitive, multi-document batch can be written as a Tier 0 app on the public SPI: the entry, its slips and its ledger voucher commit or roll back together, and an append-only ledger keeps cancellation auditable.
  • What it does not prove. It is a demo payroll app, not payroll software. Personal income tax, the employer's insurance share, salary payout and bank files are absent (see below). Do not compare it feature by feature with Frappe HRMS.
  • Per-tenant formulas without code releases. Wasm components move tariff changes out of the release train. The trade-off is that formulas are compiled modules, not a formula editor; HR cannot change them without a developer.
  • Run size and latency. The batch runs inside the HTTP request that saves the entry, up to 1,000 employees. Measure request time and transaction length at your headcount before relying on it; a month-end background job with leader election is on the roadmap, not built.
  • Ledger granularity. One voucher per run, totals per account. If your auditors need 334 per employee or cost-centre allocation, that is not there yet.
  • Data protection. Employee names reach an AI agent masked, and the agent inherits the caller's permissions. Employees cannot yet read their own slips (if-owner applies to writes only).
  • When not to use it today. Any real payroll that must file tax or pay staff. Use it to evaluate the platform's shape: SPI, hooks, Wasm, ledger and MCP working together on a real business flow.

Try it yourself

Prerequisites: JDK 25, Docker with about 8 GB of RAM, kubectl, k3d, jq, Bash 5 (brew install bash on macOS). The hanh user must exist in Keycloak; if the realm changed since your cluster was created, run scripts/keycloak-sync-realm.sh.

make k3d-up                          # cluster: kernel pods, PostgreSQL, Redis, Keycloak, Seata, CDC worker
make demo-seed                       # loads September 2026 for saigon-express (and hanoi-express)
make demo-hrm                        # all scenes, Enter between steps
make demo-hrm SCENES="4 5 6" PAUSE=0 # open, inspect and submit a payroll run without pausing

Expected output (numbers from the recorded run; entry and slip names depend on how many runs you have opened):

  • Scene 4: HTTP 201 with "docstatus": 0, then four draft slips with payment_days 26.0, 24.5, 15.0 and 25.0.
  • Scene 6: "employees": 4, "gross": 35837501, "net": 32320001, and five ledger lines for the voucher.
  • Scene 8: the trial balance shows "balance": 0.00 for 334, 3383, 3384, 3386 and 642.

Then open Desk at http://localhost:8080/desk/ as hanh (password Astra@123, local stack only) to see the Payroll Entry and Salary Slip forms. The integration test is astra-server/src/test/java/io/astra/server/HrmPayrollTest.java.

To be accurate

From the script's "To be accurate" section for Video 19:

  • No personal income tax is computed; net is gross minus the employee share of insurance. The employer share (BHXH, BHYT, BHTN, KPCĐ) is not computed. Insurance rates and caps are seed configuration for the demo and have not been checked against current regulations; the rule that 14 or more days of leave means no BHXH contribution is not handled.
  • Minimal attendance: no holiday calendar, shifts, check-in, or leave requests with balances. The working week is fixed Monday to Saturday, and days without an attendance record count as worked. Parcel counts are entered by ops with attendance, not pulled from Waybill or STMS through CDC as the use case describes.
  • Only four calculation types (Fixed, % of base, % of gross, Wasm), no formula editor. No salary payout journal entry (Debit 334 / Credit 112) and no bank file export. The accrual records totals per account, not per employee on 334; all cost goes to 642, with no cost-centre allocation.
  • The batch runs inside the request that saves the entry (up to 1,000 employees). There is no month-end background job or leader election. Slips and the ledger share one PostgreSQL transaction, without Seata.
  • Employees cannot view their own slips: the if-owner permission applies to writes only, not to reads.
  • No dedicated payroll Desk: the generic Desk shows slip lines as "N item(s)".
  • The figures in the script were computed from the hook's logic; the numbers in this article's "What the video shows" come from the recorded run, and the "Real-world example" values are hand-computed and illustrative.

Figures

Related

AI resources

Give your AI assistant the current company’s documentation, Markdown pages, and OpenAPI contract.

llms.txtllms-full.txtopenapi.json
Source
Help me integrate with AstraCMS Docs (Không áp dụng).
Read https://zerohost-b69e460a-fdedfaced775e42578cf55c1346b15d0.zhst.app/astra-cms/en/llms.txt first, then https://zerohost-b69e460a-fdedfaced775e42578cf55c1346b15d0.zhst.app/astra-cms/en/llms-full.txt and https://zerohost-b69e460a-fdedfaced775e42578cf55c1346b15d0.zhst.app/astra-cms/en/openapi.json.
Use only the documented endpoints, authentication, schemas and examples. Ask me about my application stack and the operation I need before writing code. Identify any documented limitations or inconsistencies. Keep credentials in environment variables, never in client-side code. Use the sandbox for examples; do not execute requests or change production data without my explicit approval.
Documentation locale: en. API language value: en.
Current page: https://zerohost-b69e460a-fdedfaced775e42578cf55c1346b15d0.zhst.app/astra-cms/en/hrm.
