Append-only ledger

▶ English · Tiếng Việt · 2:32 · Script: demo-video-series.en.md

In one sentence: business documents post balanced double-entry lines into one PostgreSQL table, astra_ledger, in the same transaction as the document; corrections are reversing entries, and a database trigger refuses UPDATE and DELETE even from the table owner. Read this if: you write a hook that must book money and want to know what GeneralLedger.post and reverse guarantee (developer) / you need to explain to an auditor or CFO why the books cannot be silently edited, and where that guarantee stops (tech lead).

The problem

Astra Express bills a shipping fee when an order is submitted, collects COD (cash on delivery) from the receiver when the parcel is delivered, and later pays that cash out to the shop. Each of those is money, and each has to be visible in the general ledger on the Vietnamese chart of accounts (Circular 200).

Three things usually go wrong:

The ledger drifts from the documents. The order commits, then a background job posts the journal entry and fails. Now the order says "billed" and the books say nothing.
History gets edited. A wrong fee is "fixed" with an UPDATE. The balance is right, but nobody can show what was booked last month, which is exactly what an auditor asks.
Balances live in a summary table updated beside the entries. The two disagree after the first bug.

ERPNext answers the first two in application code: GL Entries are written on submit, and cancelling posts reversing entries. Astra follows the same accounting model and adds two things: the posting joins the document's database transaction through an SPI, and the database itself refuses to rewrite ledger rows.

What the video shows

Scene	What you see	What it proves
General ledger	`khoa` opens the trial balance: accounts 112, 131, 1388, 3388, 511	Balances are computed from the ledger rows; there is no summary table.
Submit	`tuan` submits an order; the form shows a "Ledger entries" card: Debit 131 / Credit 511, 73,000 VND	The journal entry is written in the same transaction as the order.
Cancel	The order is cancelled; two new lines appear, marked as reversal; the two original lines are unchanged	Cancelling deletes nothing. The balance returns to zero and the history stays intact.
Delivered	`quang` scans the parcel Delivered: Debit 1388 / Credit 3388, 850,000 VND	COD collected by the courier is owed to the shop, booked in the scan's transaction.
UPDATE	A terminal `UPDATE astra_ledger …` fails with `astra_ledger is append-only`	A trigger in the database blocks the change, even for the role that owns the table.
Partitions	The partitions section lists monthly partitions	At startup the kernel creates this month's partition and the next two; outside that range rows go to a default partition.
Payout	A COD payout of 99,000,000 against 350,000 owed is refused with 422; the creator cannot approve a payout, Thu can	The amount owed is read from the ledger inside the hook; maker ≠ checker (Video 11).

How it works

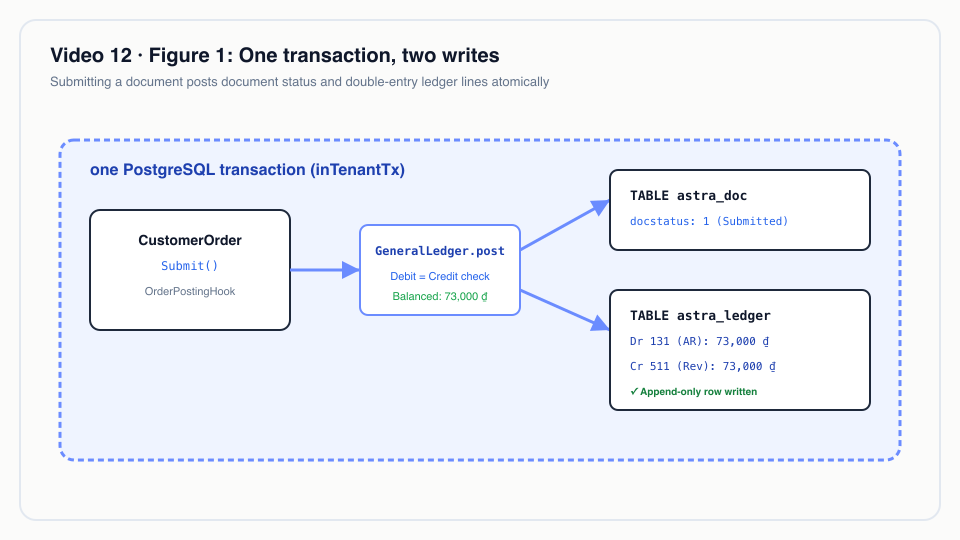

Figure 1: One transaction, two writes One transaction, two writes: submitting a document commits the document status and debit/credit ledger lines atomically.

1. Apps post through an SPI, not SQL

An app never touches the ledger table. It injects GeneralLedger from astra-spi and describes a voucher.

astra-spi/src/main/java/io/astra/spi/ledger/GeneralLedger.java

/**
 * Double-entry postings to the append-only ledger of the current tenant. Called from lifecycle hooks,
 * a posting joins the triggering document's transaction: the voucher and its entries commit together.
 * Entries are never changed; {@link #reverse} posts mirror entries instead.
 */
public interface GeneralLedger {
    // …
    /** Posts a balanced voucher (total debit = total credit); zero-amount lines are skipped. */
    void post(String voucherType, String voucherNo, LocalDate postingDate, List<Entry> entries, String remarks);

    /** Posts the mirror of every entry of a voucher, dated today; refuses a voucher already reversed. */
    void reverse(String voucherType, String voucherNo);

    /** Debit minus credit of an account, optionally for one party. */
    BigDecimal balance(String account, String party);
}

The order's hook is the whole accounting integration for billing:

astra-apps/express/src/main/java/io/astra/apps/express/OrderPostingHook.java

    @Override
    public void onSubmit(Document order) {
        BigDecimal fee = BigDecimal.valueOf(Numbers.toDouble(order.get("shipping_fee")));
        String customer = order.getString("customer");
        ledger.post("CustomerOrder", order.name(), LocalDate.now(), List.of(
                Entry.debit(Accounts.RECEIVABLE, customer, fee),
                Entry.credit(Accounts.REVENUE, customer, fee)), "Shipping fee " + order.name());
    }

    @Override
    public void onCancel(Document order) {
        ledger.reverse("CustomerOrder", order.name());
    }

The account codes are constants in the app, named after Circular 200:

astra-apps/express/src/main/java/io/astra/apps/express/Accounts.java

    static final String BANK = "112";                 // Tiền gửi ngân hàng
    static final String RECEIVABLE = "131";           // Phải thu của khách hàng: shipping fees
    static final String COD_HELD = "1388";            // Phải thu khác: COD collected, still with couriers
    static final String COD_PAYABLE = "3388";         // Phải trả khác: COD owed to the shop
    static final String REVENUE = "511";              // Doanh thu cung cấp dịch vụ

Why an SPI: the same contract serves every app (the HRM app posts its payroll accrual through it, see Video 19), and the kernel can change storage without touching apps.

2. The kernel validates, then inserts in the tenant transaction

LedgerStore implements the SPI. It rounds to two decimals, refuses negatives, refuses an unbalanced voucher, refuses accounts that are not in the tenant's Account DocType, and inserts inside tx.inTenantTx, the same transaction the document is being saved in.

astra-doctype/src/main/java/io/astra/doctype/ledger/LedgerStore.java

    @Override
    public void post(String voucherType, String voucherNo, LocalDate postingDate, List<Entry> entries, String remarks) {
        List<Entry> lines = entries.stream().map(LedgerStore::rounded)
                .filter(e -> e.debit().signum() != 0 || e.credit().signum() != 0).toList();
        if (lines.isEmpty()) return;
        BigDecimal debit = lines.stream().map(Entry::debit).reduce(BigDecimal.ZERO, BigDecimal::add);
        BigDecimal credit = lines.stream().map(Entry::credit).reduce(BigDecimal.ZERO, BigDecimal::add);
        if (debit.compareTo(credit) != 0) {
            throw new DocValidationException("unbalanced voucher " + voucherNo + ": debit " + debit + " ≠ credit " + credit);
        }
        tx.inTenantTx(conn -> {
            requireAccounts(conn, lines);
            ensurePartition(conn, postingDate);
            insert(conn, voucherType, voucherNo, postingDate, lines, false, remarks);
            return null;
        });
    }

Because the posting and the document share one transaction, a refused posting rolls back the submit. There is no state where the order is submitted and its fee is missing from the books. Every row also records posted_by (the token's user, or system outside a request).

3. Reversal mirrors, it never edits

astra-doctype/src/main/java/io/astra/doctype/ledger/LedgerStore.java

            if (reversed) throw new DocValidationException("voucher " + voucherNo + " is already reversed");
            if (original.isEmpty()) return null;
            LocalDate today = LocalDate.now();
            ensurePartition(conn, today);
            List<Entry> mirror = original.stream().map(e -> new Entry(e.account(), e.party(), e.credit(), e.debit())).toList();
            insert(conn, voucherType, voucherNo, today, mirror, true, "Reversal of " + voucherNo);

Debit and credit swap; is_reversal is true; the posting date is today. Why today: an order billed in October and cancelled in November must leave October's figures as they were reported. The reversal lands in November's partition.

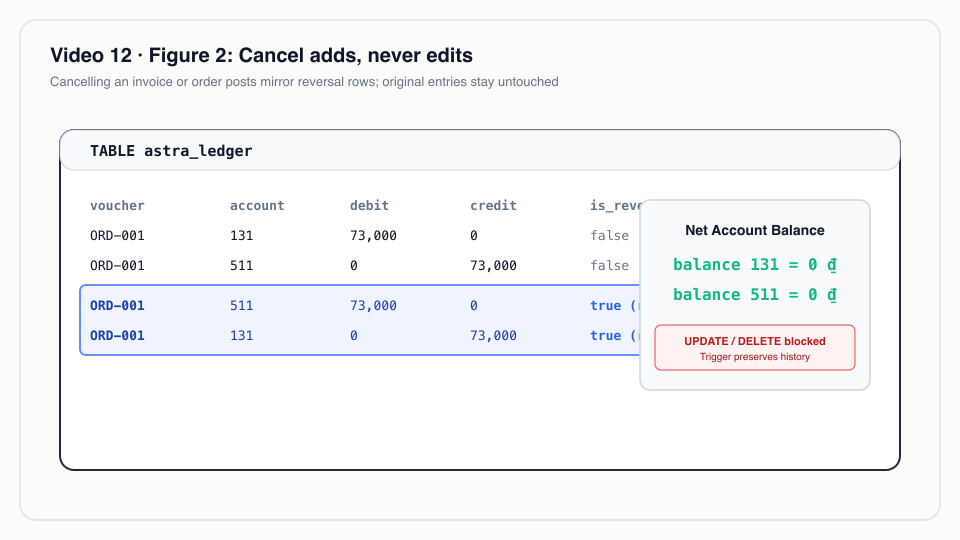

Figure 2: Cancel adds, never edits Cancel adds, never edits: cancelling a document posts an exact mirror reversal entry; previous lines remain immutable.

4. The database protects itself

astra-doctype/src/main/resources/db/migration/V3__ledger.sql

CREATE TABLE astra_ledger (
    id            bigint GENERATED ALWAYS AS IDENTITY,
    tenant_id     text           NOT NULL,
    -- …
    debit         numeric(18, 2) NOT NULL DEFAULT 0,
    credit        numeric(18, 2) NOT NULL DEFAULT 0,
    voucher_type  text           NOT NULL,
    voucher_no    text           NOT NULL,
    is_reversal   boolean        NOT NULL DEFAULT false,
    remarks       text,
    posted_by     text           NOT NULL,
    posted_at     timestamptz    NOT NULL DEFAULT now(),
    PRIMARY KEY (id, posting_date),
    CONSTRAINT astra_ledger_one_side CHECK (debit >= 0 AND credit >= 0 AND (debit = 0) <> (credit = 0))
) PARTITION BY RANGE (posting_date);

-- Rows outside the monthly partitions that the kernel creates ahead of time land here.
CREATE TABLE astra_ledger_default PARTITION OF astra_ledger DEFAULT;
-- …
CREATE FUNCTION astra_ledger_append_only() RETURNS trigger LANGUAGE plpgsql AS $$
BEGIN
    RAISE EXCEPTION 'astra_ledger is append-only: post a reversal instead of %', TG_OP
        USING ERRCODE = 'insufficient_privilege';
END $$;

CREATE TRIGGER astra_ledger_no_update_delete
    BEFORE UPDATE OR DELETE ON astra_ledger
    FOR EACH ROW EXECUTE FUNCTION astra_ledger_append_only();

Design choices worth noticing:

Fixed relational columns, not JSONB. Documents live in astra_doc as JSONB (Video 2); ledger rows are narrow and numeric so sums are exact numeric(18,2) arithmetic and indexes are plain B-trees (astra_ledger_voucher_idx, astra_ledger_account_idx).
One side per line, enforced by a CHECK constraint, so a line cannot be both debit and credit or negative.
Row-level security with the same astra.tenant setting as documents, also enabled on each monthly partition, so querying a partition directly is as isolated as querying the parent.
A trigger instead of REVOKE. Privileges do not bind the table owner; a trigger fires for every role that does not drop it.

5. Partitions are created ahead of time

astra-doctype/src/main/java/io/astra/doctype/ledger/LedgerPartitions.java

    void onStart(@Observes StartupEvent ev) {
        try (Connection conn = dataSource.getConnection()) {
            conn.setAutoCommit(true);
            for (int i = 0; i < 3; i++) {
                LocalDate month = LocalDate.now().plusMonths(i);
                try {
                    ledger.ensurePartition(conn, month);
                } catch (SQLException e) {
                    // Another pod may be creating the same partition; the next posting retries.
                    LOG.warnf("Ledger partition for %s not created yet: %s", month.withDayOfMonth(1), e.getMessage());
                }
            }
        // …

LedgerStore.ensurePartition is also called lazily before each posting. Monthly partitions keep closing a period cheap: a past month is a table you can archive or attach to a reporting system without touching the current one.

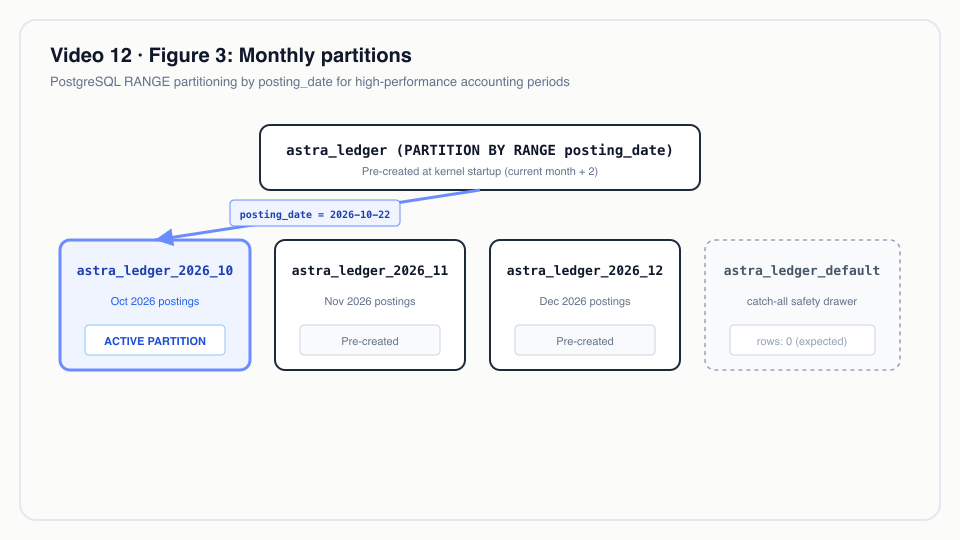

Figure 3: Monthly partitions Monthly partitions: ledger entries route into monthly partitions automatically, keeping table scans fast and maintenance manageable.

6. COD: owed money comes from the ledger

Delivery books the cash the courier now holds (WaybillScanHook), and a payout may not exceed what the ledger says is owed to that shop:

astra-apps/express/src/main/java/io/astra/apps/express/RemittanceHook.java

    private BigDecimal outstanding(Document doc) {
        String customer = doc.getString("customer");
        return customer == null ? BigDecimal.ZERO : ledger.balance(Accounts.COD_PAYABLE, customer).negate();
    }

    private void check(Document doc) {
        BigDecimal amount = BigDecimal.valueOf(Numbers.toDouble(doc.get("amount")));
        BigDecimal owed = outstanding(doc);
        if (amount.signum() <= 0) throw new DocValidationException("amount must be positive");
        if (amount.compareTo(owed) > 0) {
            throw new DocValidationException("amount " + plain(amount) + " exceeds the COD owed to "
                    + doc.getString("customer") + " (" + plain(owed) + ")");
        }
    }

check runs on save and again on submit, then the payout posts Debit 3388 / Credit 112. There is no "outstanding" column to maintain; the number is a sum over append-only rows.

Real-world example

Illustrative scenario: the company, people and values are made up; the mechanism and the rules it applies are the real ones shown above.

A small e-commerce courier in Ho Chi Minh City runs one day of business on Astra.

Inputs:

Sales submits order A for shop S01 with a computed fee of 45,000 VND.
The weight was wrong. An accountant cancels order A (sales has no cancel permission); sales amends it, and the amended order is submitted with a fee of 62,000.
The parcel is delivered; the receiver paid COD of 1,200,000.
Accountant An prepares a payout of 1,200,000 to S01; accountant Binh approves it.

What Astra posts (astra_ledger):

Voucher	Account	Debit	Credit	`is_reversal`
Order A	131	45,000		false
Order A	511		45,000	false
Order A	511	45,000		true
Order A	131		45,000	true
Amended order	131	62,000		false
Amended order	511		62,000	false
Waybill	1388	1,200,000		false
Waybill	3388		1,200,000	false
CODRemittance	3388	1,200,000		false
CODRemittance	112		1,200,000	false

Output (trial balance, debit minus credit): 131 = 62,000; 511 = −62,000; 1388 = 1,200,000; 3388 = 0; 112 = −1,200,000. The sum is zero. The wrong 45,000 fee is still visible, together with who posted it and who reversed it. If An had tried to approve her own payout, or pay 1,300,000, the kernel would have answered 403 or 422 and nothing would have been written.

Note that the demo app does not post the courier handing cash to the company, so 1388 stays open here; a real deployment needs that voucher (for example Debit 111 or 112 / Credit 1388).

For technical leaders

The guarantee is layered. Apps cannot write SQL to the ledger (SPI), the kernel refuses unbalanced or unknown-account vouchers, and the database refuses UPDATE and DELETE. The weakest layer is the database role: run the kernel with a role that does not own the tables, so it cannot DROP or ALTER them.
Atomicity is local. Posting joins the PostgreSQL transaction of the document. A posting that must also commit with another resource (credit limits in another schema, capacity in Redis) needs Seata, covered in Video 17.
Cost. Every submit and cancel adds rows; nothing is ever removed. Plan storage per month of postings, and partition archiving as the retention mechanism.
Balances are aggregates. balance() and the trial balance sum rows on demand. Fine for the demo's volume; at millions of rows per month, add period snapshots or a reporting replica (Video 16) rather than a mutable summary.
What to measure. Rows in astra_ledger_default (should be zero; non-zero means postings outside the pre-created months), unbalanced-voucher refusals (a bug in a hook), and reversal ratio per voucher type.
When not to use this. If your accounting system of record is an external ERP and Astra only feeds it, post there instead and keep Astra's documents as the source.
Compared with alternatives. An event-sourced store gives similar immutability with more machinery; a mutable GL table with audit logs gives edit history but not prevention. ERPNext uses reversing GL entries enforced in application code; Astra adds the database-level refusal.

Try it yourself

Prerequisites: JDK 25, Docker Desktop with 8 GB for the k3d stack, kubectl, k3d, jq, Bash 5.

make k3d-up
make demo-reset && make demo-seed
make demo-express SCENES=10 PAUSE=0
open http://localhost:8080/desk/        # sign in as khoa / Astra@123 → General ledger

Expected from scene 10 of scripts/demo-express.sh:

GET /api/ledger/trial-balance lists account, debit, credit, balance.
After tuan submits an order, GET /api/ledger/entries?voucher_no=<order> shows Debit 131 / Credit 511 and the partition each row sits in.
After the cancel, the same call shows two more rows with is_reversal: true.
When the script can reach the database (DB=k3d or DB=compose), the UPDATE astra_ledger … prints ERROR: astra_ledger is append-only: post a reversal instead of UPDATE.
GET /api/ledger/partitions lists the monthly partitions and the default partition with row counts.
POST /api/doc/CODRemittance with amount: 99000000 returns 422; a 100,000 payout by khoa is refused on submit by khoa and accepted by thu.

The behaviour is pinned by astra-server/src/test/java/io/astra/server/LedgerTest.java (for example theLedgerIsAppendOnlyEvenForItsOwner); run make test.

To be accurate

The trigger blocks only UPDATE and DELETE. The role that owns the table can still DROP or ALTER it (and a row trigger does not fire on TRUNCATE). Production should run the kernel with a role that does not own the tables.
An audit hash chain over ledger rows is still on the roadmap.
The ledger lives in the kernel's PostgreSQL transaction; the separate storage: ledger DocType kind and per-app schemas described in use-case-01.md are target architecture, not built.
The demo app posts billing, COD collection and COD payout. It does not post the courier's cash handover, VAT, or period closing.
