DocType: from one YAML file to API, UI and indexes

▶ English · Tiếng Việt · 2:38 · Script: demo-video-series.en.md

In one sentence: A DocType is one YAML file; from it the kernel serves a validated REST API, Desk builds the form and list, projected fields get online expression indexes, and every DocType is stored in one shared JSONB table with no ALTER TABLE. Read this if: you want to know exactly which YAML keys turn into which runtime behaviour (developer angle) / you need to judge the zero-DDL storage choice: what it buys, what it costs, and where it stops scaling (tech-lead angle).

The problem

Astra Express needs a Customer Order record: who is sending, who receives, the zone, the service level, weight, cash on delivery, and a fee nobody may type by hand. In a conventional stack that one record means a migration, an entity class, a DTO, a controller, validation annotations, a form component, a list page and a permission check. Six or seven artefacts have to agree about the same twelve fields, and when the business adds a thirteenth, all of them change again, plus an ALTER TABLE on a table that is being written to all day.

Frappe/ERPNext removed most of that duplication: the DocType is the single definition and the rest is generated. It still creates one table per DocType and runs DDL when a Custom Field is added (explain.en.md). On a busy multi-tenant database, DDL means locks, deployment windows, and one tenant's customisation touching every other tenant's table.

Astra keeps the DocType idea and changes the storage: business fields live in JSONB in one table, and the only DDL a new indexed field ever causes is an online CREATE INDEX CONCURRENTLY.

What the video shows

How it works

The definition

astra-apps/express/src/main/resources/META-INF/astra/doctypes/customer-order.doctype.yaml

name: CustomerOrder
module: oms
kind: transaction
submittable: true                 # Draft (0) -> Submitted (1) -> Cancelled (2) -> Amend
transaction: global               # submit/cancel span BMS credit (Seata AT) and pickup capacity (Seata TCC)
naming: { series: "ORD-.YYYYMMDD.-.#####" }

fields:
  - { name: customer,         type: Link,     options: Customer, required: true, in-list: true, projected: true }
  - { name: receiver_name,    type: Data,     required: true, in-list: true, pii: true }
  - { name: receiver_phone,   type: Data,     required: true, pii: true }
  # …
  - { name: zone,             type: Select,   options: [Same city, Domestic, Remote], default: Domestic, in-list: true, projected: true }
  - { name: service,          type: Select,   options: [Standard, Express], default: Standard, in-list: true }
  - { name: weight_kg,        type: Float,    required: true, label: Weight (kg) }
  - { name: cod_amount,       type: Currency, default: 0, label: COD amount }
  - { name: shipping_fee,     type: Currency, read-only: true, in-list: true }   # computed by ShippingFeeHook
  # …

permissions:
  - { role: admin,      read: true, create: true, write: true, submit: true, cancel: true }
  - { role: sales,      read: true, create: true, write: true, if-owner: true, submit: true }
  # …

The loader parses each field into an immutable FieldDefinition and rejects anything that is not a snake_case identifier. That check is not cosmetic: field names are later spliced into SQL expressions (data->>'zone'), so the name rule is what keeps those expressions safe.

astra-doctype/src/main/java/io/astra/doctype/registry/DocTypeLoader.java

    static FieldDefinition field(JsonNode f, String where) {
        String fieldName = f.path("name").asText("");
        if (!fieldName.matches("[a-z][a-z0-9_]{0,50}")) {
            throw new IllegalStateException(where + ": field name '" + fieldName + "' must be snake_case");
        }
        return new FieldDefinition(
                fieldName,
                FieldType.valueOf(f.path("type").asText("Data").toUpperCase(Locale.ROOT)),
                f.path("label").asText(null),
                f.path("required").asBoolean(false),
                f.path("read-only").asBoolean(false),
                f.path("in-list").asBoolean(false),
                f.path("projected").asBoolean(false),
                options(f),
                f.hasNonNull("default") ? YAML.convertValue(f.get("default"), Object.class) : null,
                f.path("pii").asBoolean(false));
    }

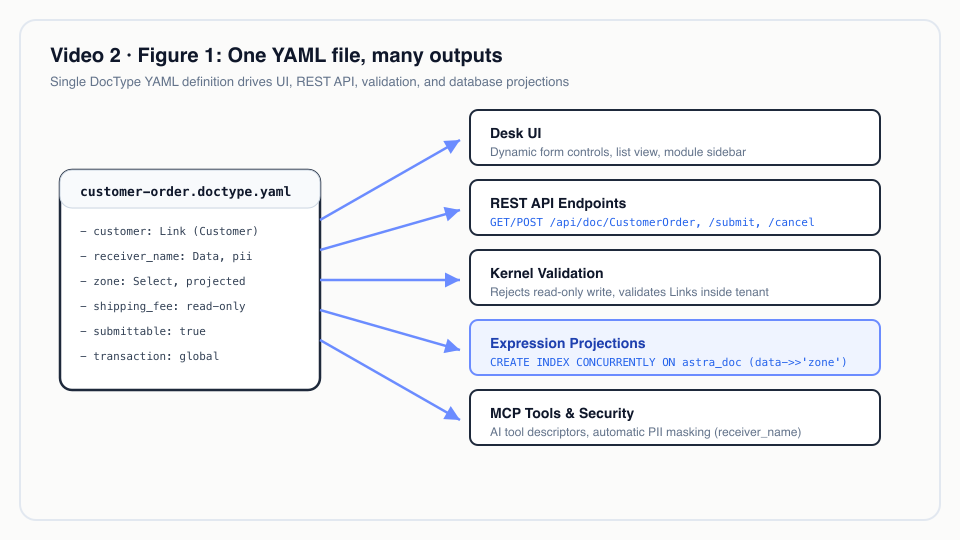

What each key turns into

View source

flowchart LR
    Y["customer-order.doctype.yaml"] --> L["DocTypeLoader<br/>(snake_case check)"]
    L --> R["DocTypeRegistry"]
    O["tenant overlay<br/>(Video 13)"] --> E["DocTypeOverlays.effective()"]
    R --> E
    E --> API["/api/doc/CustomerOrder<br/>validation, Links, read-only"]
    E --> META["/api/doctype<br/>→ Desk form, list, menu"]
    E --> MCP["MCP tools<br/>pii masked"]
    R --> IDX["ProjectionIndexer<br/>CREATE INDEX CONCURRENTLY"]
    IDX --> PG[("astra_doc<br/>one JSONB table")]
    API --> PG

Note the two arrows into effective(): the API, Desk and MCP never read the app's YAML directly. They read the effective definition for the tenant in scope, which is the app's DocType with that tenant's overlay applied. That is why a Hanoi-only field appears in Hanoi's forms and API without the Express app changing (Video 13).

Desk is a renderer, not an application

Desk asks the API for definitions and maps field types to controls. The form code switches on the field type and never on a DocType name:

astra-server/src/main/resources/META-INF/resources/desk/desk.js

function control(f, value, locked, linkOptions) {
  // …
  switch (f.type) {
    case 'SELECT':
      input = h('select', { disabled: locked },
        f.required ? null : h('option', { value: '' }, ''),
        f.options.map((o) => h('option', { selected: String(v) === o }, o)));
      break;
    // …
    case 'INT': case 'FLOAT': case 'CURRENCY':
      input = h('input', { type: 'number', step: f.type === 'INT' ? '1' : 'any', disabled: locked, value: v });
      break;
    // …
    case 'LINK': {
      const listId = 'opts-' + f.name;
      input = h('input', { list: listId, disabled: locked, value: v, placeholder: f.options[0] + ' name', spellcheck: 'false' });
      // …
    }
  }
  // …
}

Buttons follow the signed-in user's effective permissions, not hard-coded roles:

astra-server/src/main/resources/META-INF/resources/desk/desk.js

    if (doc.docstatus === 0 && perm.submit) actions.append(h('button', { class: 'btn', type: 'button', onclick: () => lifecycle(def, doc, 'submit', linkOptions) }, 'Submit'));
    if (doc.docstatus === 1 && perm.cancel) actions.append(h('button', { class: 'btn danger', type: 'button', onclick: () => lifecycle(def, doc, 'cancel', linkOptions) }, 'Cancel'));

Why build Desk this way: it is the cheapest proof that the metadata is complete. If Desk can render and operate a DocType it has never heard of, then so can an MCP client or a mobile app reading the same /api/doctype.

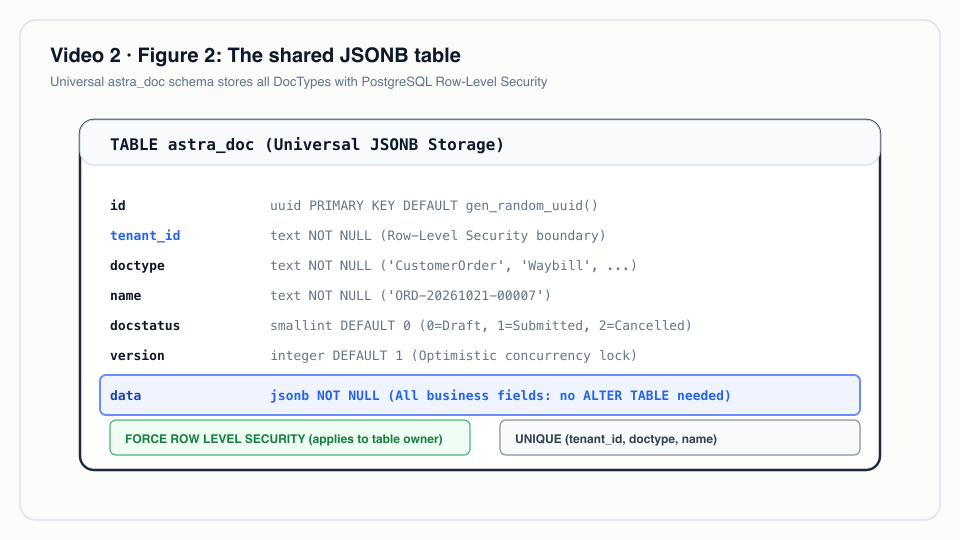

One table for every DocType

astra-doctype/src/main/resources/db/migration/V1__astra_doc.sql

CREATE TABLE astra_doc (
    id           uuid        PRIMARY KEY DEFAULT gen_random_uuid(),
    tenant_id    text        NOT NULL,
    doctype      text        NOT NULL,
    name         text        NOT NULL,
    docstatus    smallint    NOT NULL DEFAULT 0,
    owner        text        NOT NULL,
    created_at   timestamptz NOT NULL DEFAULT now(),
    modified_at  timestamptz NOT NULL DEFAULT now(),
    version      integer     NOT NULL DEFAULT 1,
    data         jsonb       NOT NULL DEFAULT '{}'::jsonb,
    CONSTRAINT astra_doc_tenant_doctype_name_key UNIQUE (tenant_id, doctype, name)
);

CREATE INDEX astra_doc_list_idx ON astra_doc (tenant_id, doctype, modified_at DESC);
CREATE INDEX astra_doc_data_gin ON astra_doc USING gin (data jsonb_path_ops);

ALTER TABLE astra_doc ENABLE ROW LEVEL SECURITY;
ALTER TABLE astra_doc FORCE ROW LEVEL SECURITY;   -- applies to the table owner too

The columns are the ones the kernel itself needs on every record: identity, tenant, type, lifecycle state (docstatus), owner, timestamps and an optimistic-lock version. Everything the business defines goes into data. Adding a DocType or a field is therefore a metadata change, never a schema change. (A later migration adds amended_from for Video 4's amend chain.)

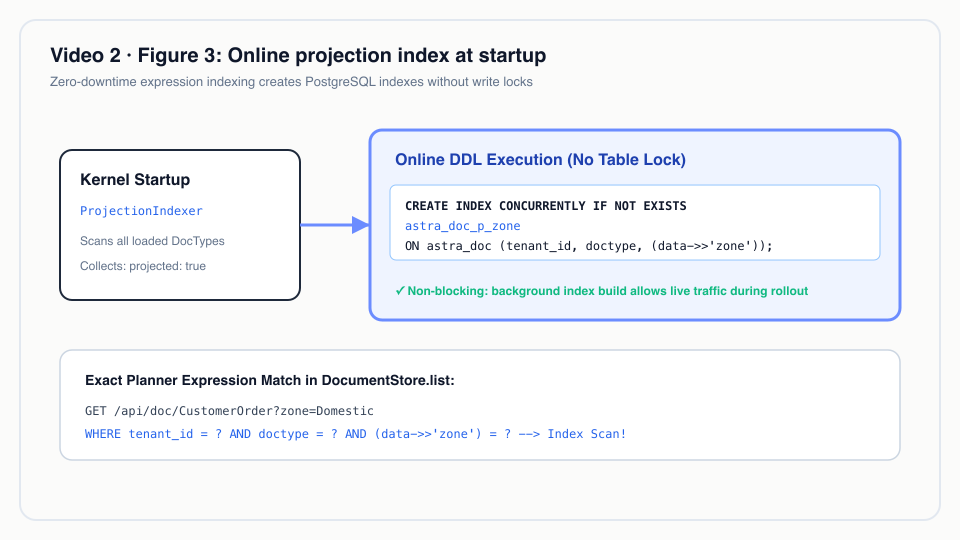

Projections: indexes without ALTER TABLE

astra-doctype/src/main/java/io/astra/doctype/store/ProjectionIndexer.java

    static String expression(FieldDefinition field) {
        return "(data->>'" + field.name() + "')";
    }
    // …
    void onStart(@Observes StartupEvent ev) {
        Map<String, FieldDefinition> fields = projectedFields();
        try (Connection conn = dataSource.getConnection(); Statement st = conn.createStatement()) {
            conn.setAutoCommit(true); // CREATE INDEX CONCURRENTLY cannot run inside a transaction block
            for (FieldDefinition f : fields.values()) {
                try {
                    st.execute("CREATE INDEX CONCURRENTLY IF NOT EXISTS " + indexName(f.name())
                            + " ON astra_doc (tenant_id, doctype, " + expression(f) + ")");
                    // …
                } catch (SQLException e) {
                    // Another pod may be building the same index right now; the next start retries.
                    // …
                }
            }
        }
        // …
    }

Three design choices are packed in here:

1. CONCURRENTLY builds the index without blocking writes. It cannot run in a transaction, hence setAutoCommit(true).
2. Indexes are keyed by field name, not by DocType. astra_doc_p_zone serves every DocType that has a projected zone, and the leading (tenant_id, doctype, …) columns keep lookups narrow. This keeps the index count proportional to distinct projected field names, not to DocTypes times fields.
3. The list filter uses the same expression. A planner can only use an expression index when the query repeats the expression exactly, so DocumentStore.list builds its WHERE with ProjectionIndexer.expression(field):

astra-doctype/src/main/java/io/astra/doctype/store/DocumentStore.java

                FieldDefinition field = def.field(f.getKey())
                        .orElseThrow(() -> new DocValidationException("unknown filter '" + f.getKey() + "' for DocType " + doctype));
                sql.append(" AND ").append(ProjectionIndexer.expression(field)).append(" = ?");

The projections endpoint reads the result back from the PostgreSQL catalog, not from the YAML, so what Desk shows is what the database actually has:

SELECT i.indisvalid, pg_get_indexdef(i.indexrelid) FROM pg_index i
JOIN pg_class c ON c.oid = i.indexrelid WHERE c.relname = ?

Real-world example

A cold-chain distributor (hypothetical, mechanisms real) ships vaccines and seafood from Ho Chi Minh City and needs to separate frozen, chilled and ambient orders. Dispatchers filter by that class all day.

Input: one field added to the app's order DocType and a new image rolled out.

  - { name: temperature_class, type: Select, options: [Frozen, Chilled, Ambient], default: Ambient, in-list: true, projected: true }

What Astra does:

1. On startup, each kernel pod runs CREATE INDEX CONCURRENTLY IF NOT EXISTS astra_doc_p_temperature_class ON astra_doc (tenant_id, doctype, (data->>'temperature_class')). Writes continue during the build. If the second pod collides with the first, it logs a warning and the index is retried on its next start.
2. Existing orders have no temperature_class in data. When a draft is next saved, the validator fills the default Ambient. No backfill migration runs; submitted and untouched rows simply lack the key, so a ?temperature_class=Ambient filter does not return them.
3. The API rejects {"temperature_class":"Warm"} with 422 and field 'temperature_class' must be one of [Frozen, Chilled, Ambient].
4. Desk shows a drop-down on the form and a column in the list, because in-list is true.
5. GET /api/doc/CustomerOrder?temperature_class=Frozen filters with the indexed expression.

Output: a new, validated, indexed field with zero ALTER TABLE and no change to Desk code. If only one tenant needed the field, a tenant overlay would add it at run time without a new image (Video 13).

For technical leaders

• What zero-DDL buys. Adding DocTypes and fields never locks a table, and tenant customisations cannot collide in the schema. Rollouts no longer need a migration window for form changes.
• What it costs. Every DocType shares one table and one set of indexes. Type safety moves from the database to the kernel validator; a buggy writer that bypasses the kernel can store anything in data. The kernel is the only intended writer, and row-level security still applies to every statement.
• Index semantics are text equality. The expression is data->>'field', so the index serves equality filters on text. Range queries on numbers or dates, sorting by a business field, or aggregation are not served by these indexes today.
• Hot fields. PostgreSQL rewrites the whole row on UPDATE. A DocType whose few fields change many times a day (stock, balances, counters) bloats a JSONB row. The design answer is materialised projection columns and ledgers (explain.en.md); materialised projections are not built yet. Measure update rate per DocType before putting high-churn data in astra_doc.
• Index lifecycle. The indexer only creates. Removing projected: true does not drop the index; that is a manual DROP INDEX CONCURRENTLY today.
• What to measure. Index count on astra_doc and its write amplification; indisvalid for every projection after each rollout (GET /api/doctype/{name}/projections); p95 list latency per filter.
• When not to use it. Heavy analytical queries, wide numeric reporting, or data that needs database constraints between business fields. Those belong in a ledger, a module schema (as BMS does for credit, Video 17) or an analytics store.
• Compared with Frappe. Frappe: one table per DocType, real columns, DDL per Custom Field, strong per-column typing. Astra: one JSONB table, online expression indexes, typing enforced in the kernel.

Try it yourself

Prerequisites: the stack from Video 1 running (make k3d-up, make demo-seed).

make demo-express SCENES=2 PAUSE=0

The scene prints the YAML, then the projection status, then \d astra_doc from the k3d PostgreSQL pod. Expected projection output:

$ curl -X GET http://localhost:8080/api/doctype/CustomerOrder/projections …
HTTP 200
[
  { "field": "customer", "valid": true,
    "definition": "CREATE INDEX astra_doc_p_customer ON public.astra_doc USING btree (tenant_id, doctype, ((data ->> 'customer'::text)))" },
  { "field": "zone", "valid": true,
    "definition": "CREATE INDEX astra_doc_p_zone ON public.astra_doc USING btree (tenant_id, doctype, ((data ->> 'zone'::text)))" }
]

\d astra_doc ends with Policies (forced row security enabled) and Publications: "astra_cdc".

In Desk (http://localhost:8080/desk/, user mai): open DocType metadata, choose CustomerOrder, and expand "Raw JSON from GET /api/doctype/CustomerOrder" to see the exact definition the page rendered.

To be accurate

• CONCURRENTLY is not visible in the catalog. pg_index stores only the index definition, so the definition column never shows the word CONCURRENTLY; the narration says this on screen.
• The index count is install-specific. The video showed ten projection indexes. The current image also bundles HRM and STMS, whose projected fields add more astra_doc_p_* indexes.
• Projection indexes are built at kernel startup. A field added by an app needs a new image; there is no projection builder triggered by a metadata change at run time.
• pii masks only the MCP path. Desk and REST show PII to users whose role can read the DocType.
• Not built: materialised projections, typed expression indexes, projection quotas and dropping unused indexes. These appear in the README as target architecture. Child tables are declared in the SPI's FieldType enum (TABLE), but neither the kernel validator nor Desk handles them yet.
• Any declared field can be filtered, projected or not. Only projected fields have an index behind the filter; filtering on another field scans the tenant's rows of that DocType.
• Desk has one DocType reference. The form, list and menu code never name a DocType, but desk.js maps CustomerOrder and Waybill to their CDC replica tables for the replica card (Video 16).
